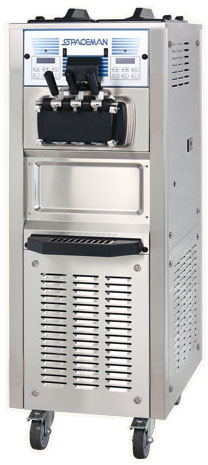

Model 6378
Soft Serve Freezer

Great for all popular soft serve mixes from low fat to non-fat frozen yogurt, ice cream, sorbet and custards.

Twin Twist Flavor, Floor Model, Gravity or Pump Feed, Independent Refrigeration System for Each Cylinder, Touch Button Controls, Stainless Steel Panels.


  • Freezing Cylinder: 2 × 3.4 quarts each

  • Mix Hopper: 2 × 17.4 quarts each


  • Separate hopper refrigeration maintains mix temperature below 40ºF.

  • Mix Low Indicator: When mix level is low, the Mix Low light turns "ON" to alert operator to add mix.

  • Hardness Indicator: Indicator displays hardness status of the product in freezing cylinder.

  • Standby: During long no-use periods, the standby feature maintains safe product temperature in the mix hoppers and freezing cylinders.

  • Electronic Controls: The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.


SPECIFICATIONS

  • Weight Pounds: Net 530 - Shipping: 574

  • Dimensions Net:
    Width 21"
    Depth 27.6"
    Height 60.6"

  • Dimensions Shipping:
    Width 25"
    Depth 31.5"
    Height 68.9"

  • Electrical
    208-230/60/1
    208-230/60/3
    Beater Motor: Two @ 1.2 HP for 1 Phase, Two @ 1.0 HP for 3 Phase

  • Refrigeration System
    Main refrigeration:Two compressors: @ 6500 BTU/hr. R404a
    Separate hopper refrigeration: One compressor: 480 BTU/hr. R134a

  • Performance: This machine can produce up to 300 servings per hour. (Serving size weight 4 ounces)




    Specifications are subject to change without notice.
