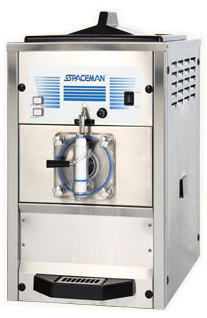

Model 6490
Frozen Beverage Freezer
Vary your menu by offering shakes & smoothies or
frozen cocktails, fruit juices, coffees, cappuccino and tea slush
beverages, all served at the desired thickness.
-
Single Flavor, Countertop, Touch Button Controls,
Stainless Steel Panels.
-
Freezing Cylinder
One, 3.8 Liter (4 quarts)
-
Mix Hopper
One, 25 Liters (26.4 quarts) Refrigerated to maintain mix below
4.4ºC (40ºF) Approved for dairy and non-dairy products.
-
Indicator Lights
Add Mix light alerts the operator to add mix. When Mix Out light
turns ON, the unit automatically shuts down to prevent damage.
-
Automatic Consistency Control
Specially designed viscosity control automatically maintains
superior product quality. Adjustable control allows the operator to
serve a wide variety of frozen beverages at the desired thickness.
-
Output
80 Cups/Hour (250 ml/cup at 40ºF Liquid & 75ºF Ambient)
-
Safety Protections
• High pressure switch prevents compressor overheat.
• Thermal overload protects from motor overheat.
SPECIFICATIONS
-
Weight Pounds: Net 190 - Shipping: 214
-
Dimensions Net:
Width 16.3 "
Depth 22.8"
Height 28.9"
-
Dimensions Shipping:
Width 18.3"
Depth 29.5"
Height 35.4"
-
Electrical
110/60/1 or 208-230/60/1
Beater Motor: One @ 1/3HP
-
Refrigeration System
One Compressor: 5000 BTU/HR, R404A (BTUs may vary depending on
compressor used.)
-
Air Cooled
Minimum clearance of 152mm (6") on both sides is required to
achieve optimum performance. The rear of the unit may be placed
against a wall.
-
Note
Continuing research results in steady improvements, therefore,
these specifications are subject to change without notice.
Specifications are subject to change without notice.
|
