Features include |
|
>>Batch Freezers
|
>Ideal
machine for the restaurant, bakeries, pastry and artisan
gelato/ice cream ice cream
|
|
>>Soft Sever Freezers
|
production. very fast freeze the
material under -35 C .D.
|
|
>>Ageing-Pasteurizing
|
>Indispensability
used to quickly make the homemade gelato/ice cream more harder
|
|
>>Combination Machine |
after
the Batch Freezer process finished.
|
|

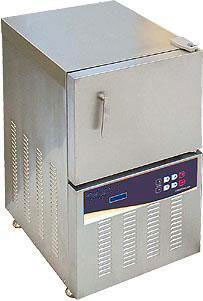

>>Blast
Freezer/Chiller |
>Chilling cavity
with rounded corners and opening on the bottom for liquid drainage.
|
|
>>Accessories |
>High density
injected CFC-free polyurethane foam insulation with 7 cm thickness. |
|
>>Commercial
ice cream recipes |
>Insulated
door with self-closing device and full height handle |
| >>Ordering
Information |
>Automatic door switch
stops fan operation when door is open.
|
|
>>Returns &
exchanges |
>Blast chilling and
blast freezing controlled by core probe or by timer.
|
|
|
>Digital
read-out of the chilling cavity or of core product temperature.
|
| >>Product
support |
>Outside
Surfaces and Chilling Cavity in 304 Stainless
|
|
>>Customer
service |
>R404a
refrigerate gas.
|
|
>>troubleshooting
|
|
|
|
 |
Technical specifications |
|
Model
|
MB2T
|
MB6T
|
MB12T
|
|
Capacity
|
26 ltr, 2 trays *
|
82 ltr, 6 trays
|
136 ltr, 12 trays
|
|
Condenser
|
Air-cooled **
|
|
Controller
|
Temperature and/or Timer
controlled
|
|
Power Type
|
110 or 220v/1 phase/50,60hz
|
220v or 400v/3/50,60hz
|
|
Installed Power
|
550 Watt
|
1200 Watt
|
2600 Watt
|
|
Refrigerant Gas
|
R 404A
|
|
Out/inside Panel
|
Stainless Steel, AISI 304
|
|
Dimension, WDH
|
470 x 585 x 765 mm
|
590 x 660 x 1130 mm
|
700 x 895 x 1385 mm
|
|
Internal Size, WDH
|
350 x 350 x 220 mm
|
450 x 350 x 530 mm
|
565 x 355 x 680 mm
|
|
Net Weight
|
58 kg , 126 lbs
|
115 kg , 250 lbs
|
220 kg , 478 lbs
|
| *Try size: (WDH) 325x175x100 mm |
| ** The performance of air-cooled models are
referred to in <25 ＜C ambient temperature. |
|
 |
 |
|
|
|
