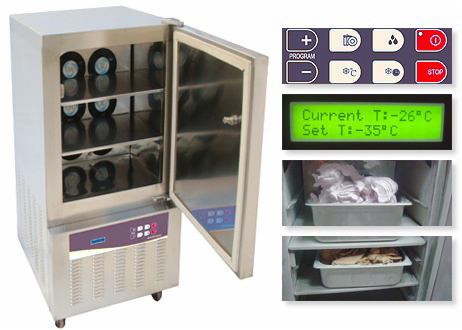

Blast Freezers/Blast Chillers/Shock Freezers is excellent for gelato & multi freezing purpose. The blast chillers can fast freezing the ice cream (or other food) and reducing the central temperature of the food to a target level very quickly. Curbs the bacterium growing so as to achieve hygienic. Shock freezing and prevent ice to appear thus to reserve original texture. The blast freezers designed and engineered for the needs of restaurants, bakeries, pastry and ice cream production, to freeze the object very fast under very low temperature.



Features Include:

  • Fast freezing prevent ice appears during temperature reducing.
    Blast chilling and blast freezing can be controlled by probe temperature or by timer, Digital read-out of the chilling cavity or core product temperature.

  • Automatic keep frozen function after process finished.

  • 100 mm thickness isolation, power saving.
    Outside surfaces and chilling cavity in stainless steel.

  • International acceptable R404a refrigerate gas.


Specifications:

MODEL

Capacity

Power Type

Installed power

Compressor Power

Cavity dimension

(mm)

Gross

Weight

Liter/Pan

Volt/Hz/Phase

Kw

H.P./ Kw

W.

D.

H.

Kg

MB2T

26 / 2

230/50,60/1

0.60

0.75 / 0.55

350

350

220

95

MB6T

145 / 6

230/50,60/1

1.20

1.5 / 1.15

450

425

760

165

MB12T

221 / 12

400,230/50,60/3,1

2.60

3.0 / 2.21

560

425

930

245

MB18T

784 / 18

400,230/50,60/3,1

4.45

5.0 / 3.68

810

605

1600

325

* The ideal working condition for air-cooled machine refers to below +25 Celsius Degree ambient

temperature. Suit for high temperature +32 c.d. machine upon request with price surcharge.

** Pan size: (WxDxH) 325 x 175 x 100 mm, also can be compatible with GN tray size.

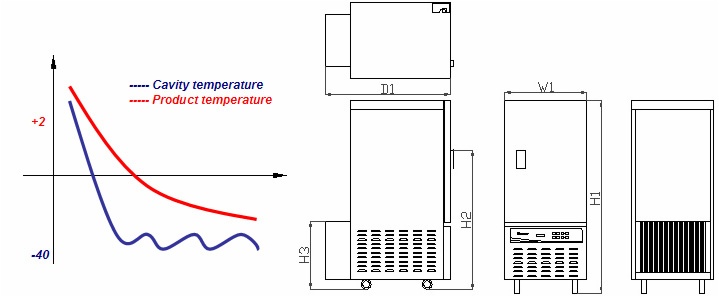

MB2T: W1=470, D1=700, H1=760, H2=680, H3=0
 MB6T: W1=590, D1=940, H1=1390, H2=1040, H3=530
 MB12T: W1=700, D1=790, H1=1700, H2=1350, H3=0
MB18T: W1=950, D1=1030, H1=2200, H2=1350, H3=0

Specifications are subject to change without notice.
